Collection filter color swatch from metaobject

Live Chat Support | Webibazaar Templatesalesiq.zohopublic.in

To display the color swatch using the metaobject in the collection filter, follow the steps below

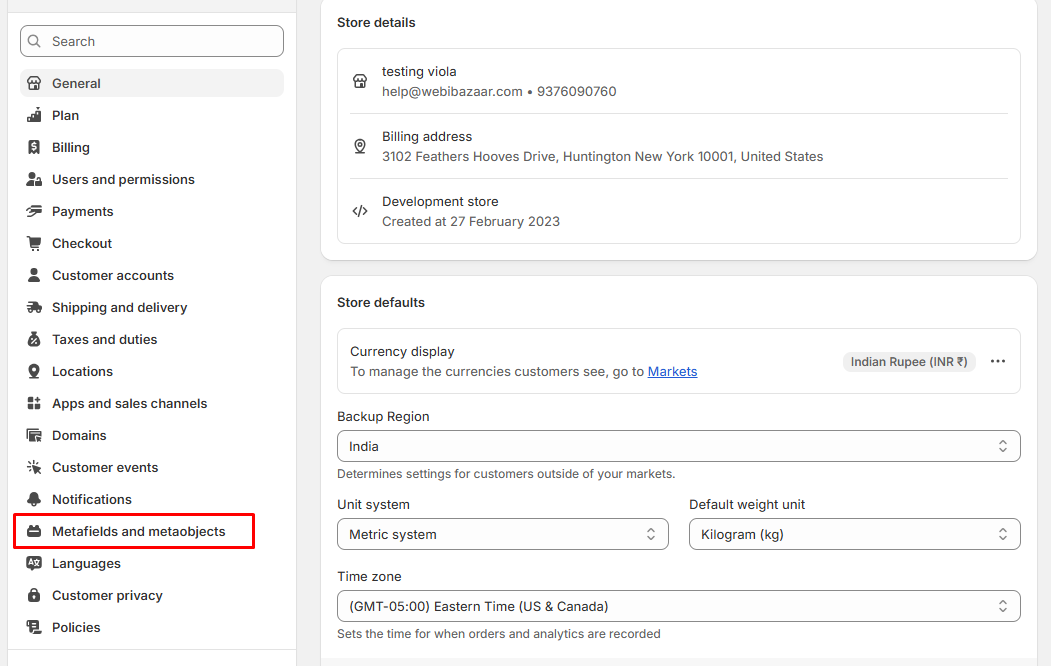

• From your Shopify admin, go to Settings > Custom data.

• Click on "Add definition".

• Add the desired name if needed and Add field.

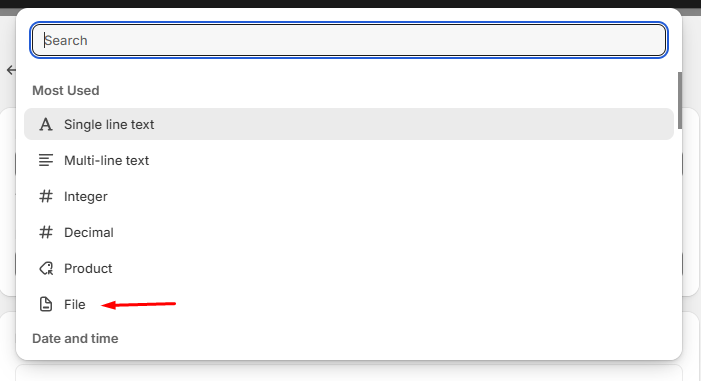

• Select File type.

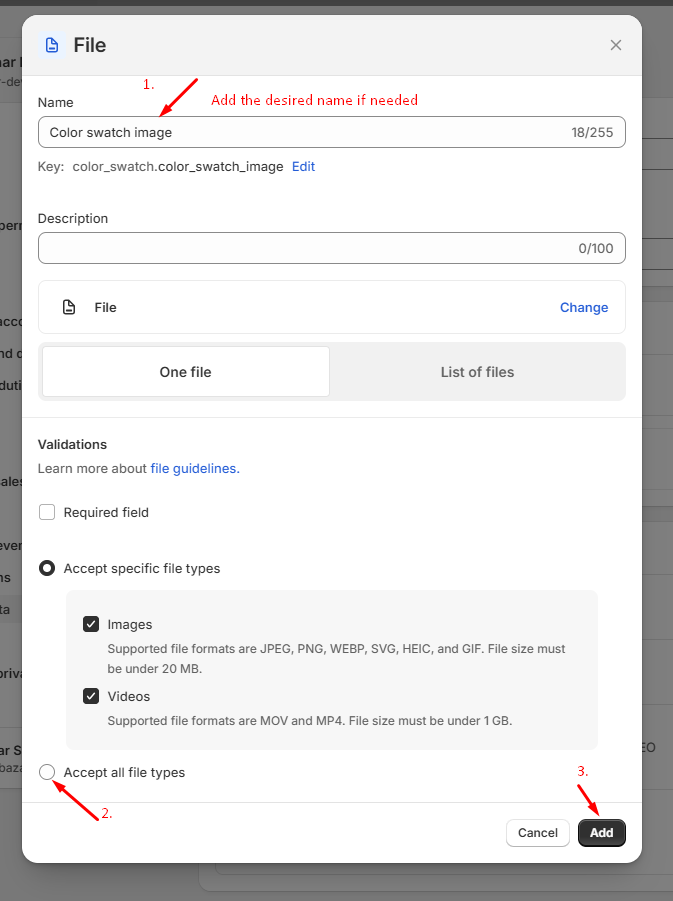

• Add the desired name if needed and Accept all file types, then click on Add button.

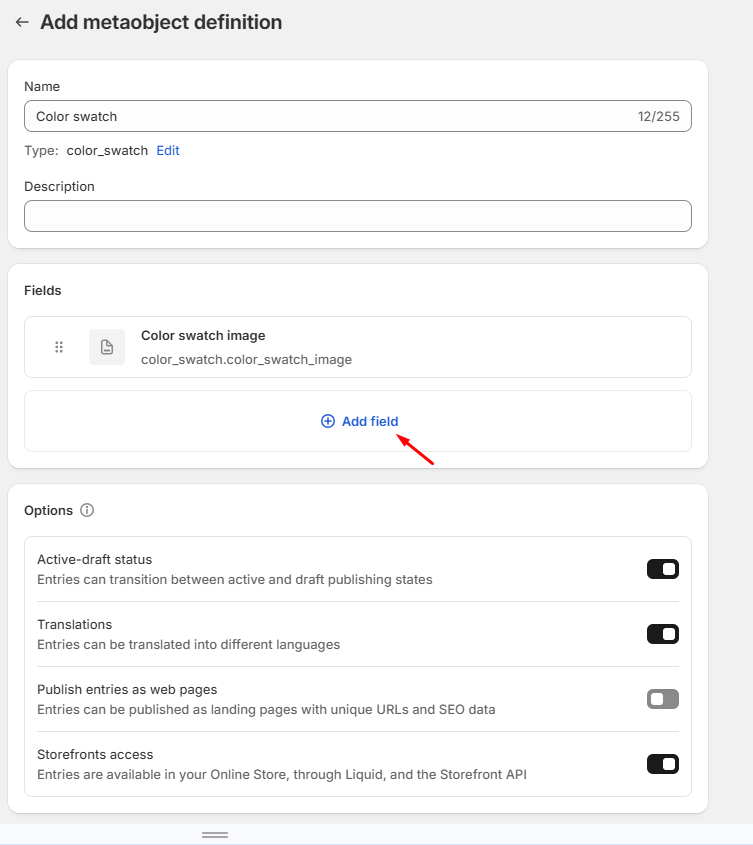

• To add a second field, click on 'Add Field' again.

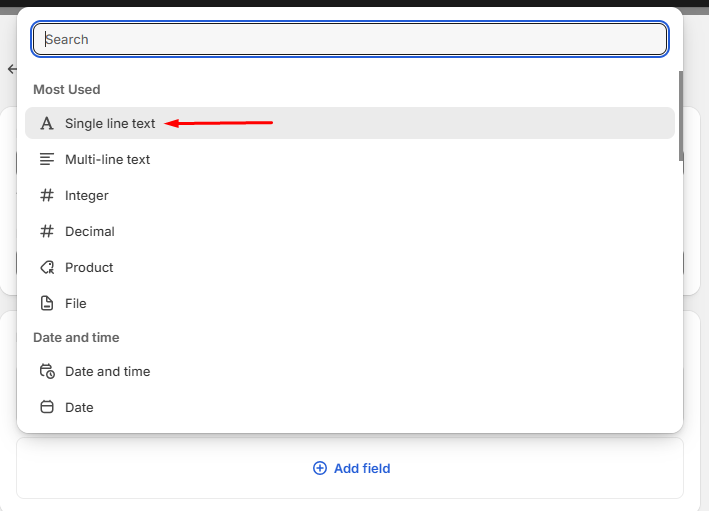

• Click on "Single line text".

• Add the desired name if needed and click on "Use as filter in metaobject index", then click on Add button.

• The metaobject fields you created will be displayed. Then click 'Save'.

• From your Shopify admin, go to Settings > Custom data > Products.

• Click on "Add definition".

• Add the desired name if needed. The name you add here will be displayed in the collection page filter. then click on Select type.

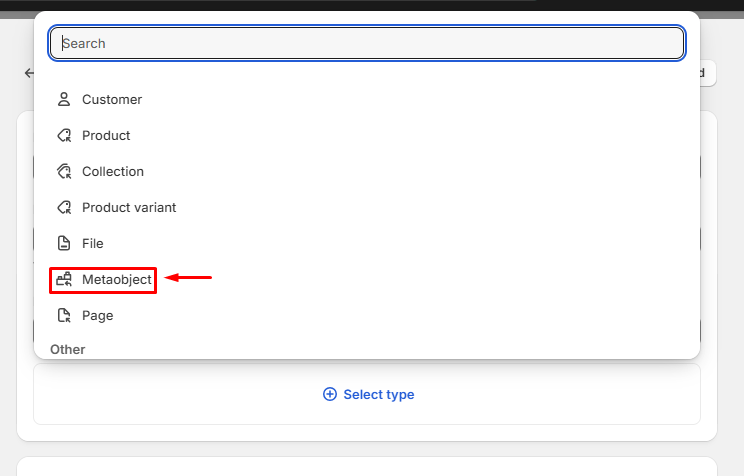

• Click on "Metaobject".

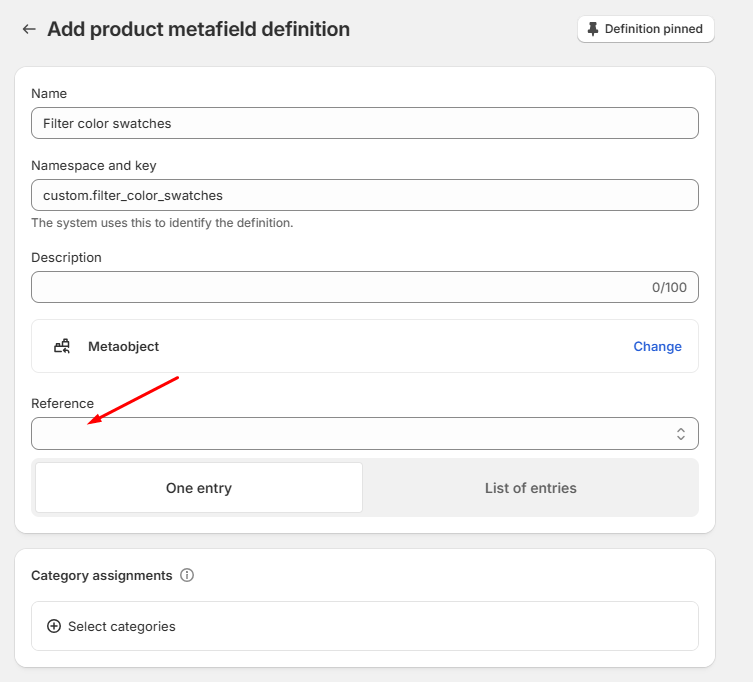

• Select the "Reference".

• Click on created metaobject, then select the "List of entries" and Save.

• From your Shopify admin, go to Content > Metaobjects.

• Click on "Add entry".

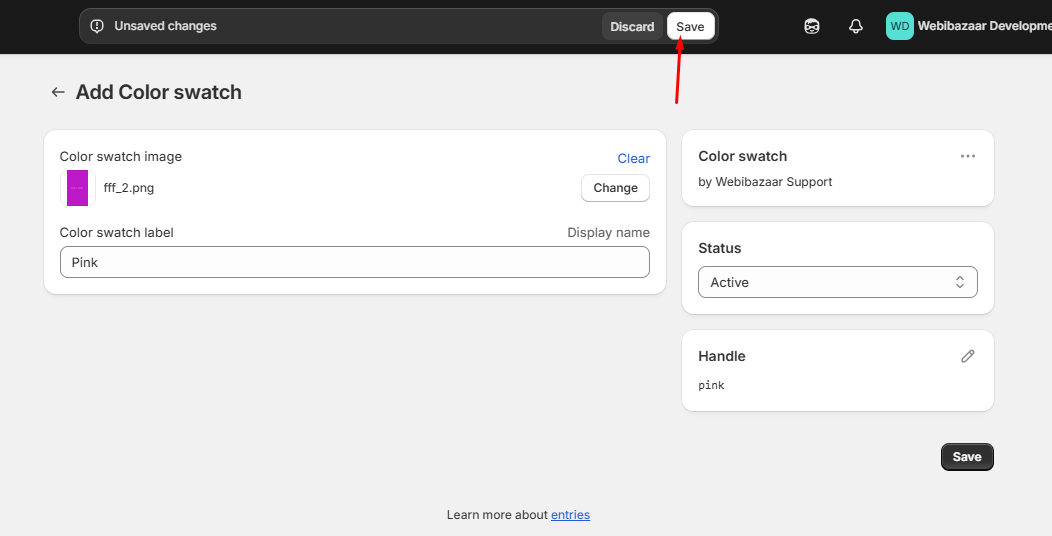

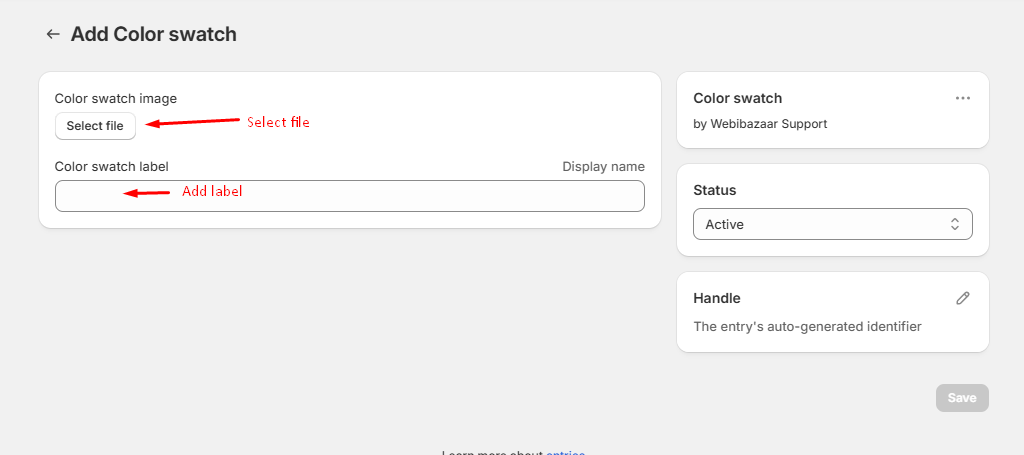

• Select the image you want to display in the color swatch filter and add a label, Then Save.

• Install the "Search & Discovery" app and open it.

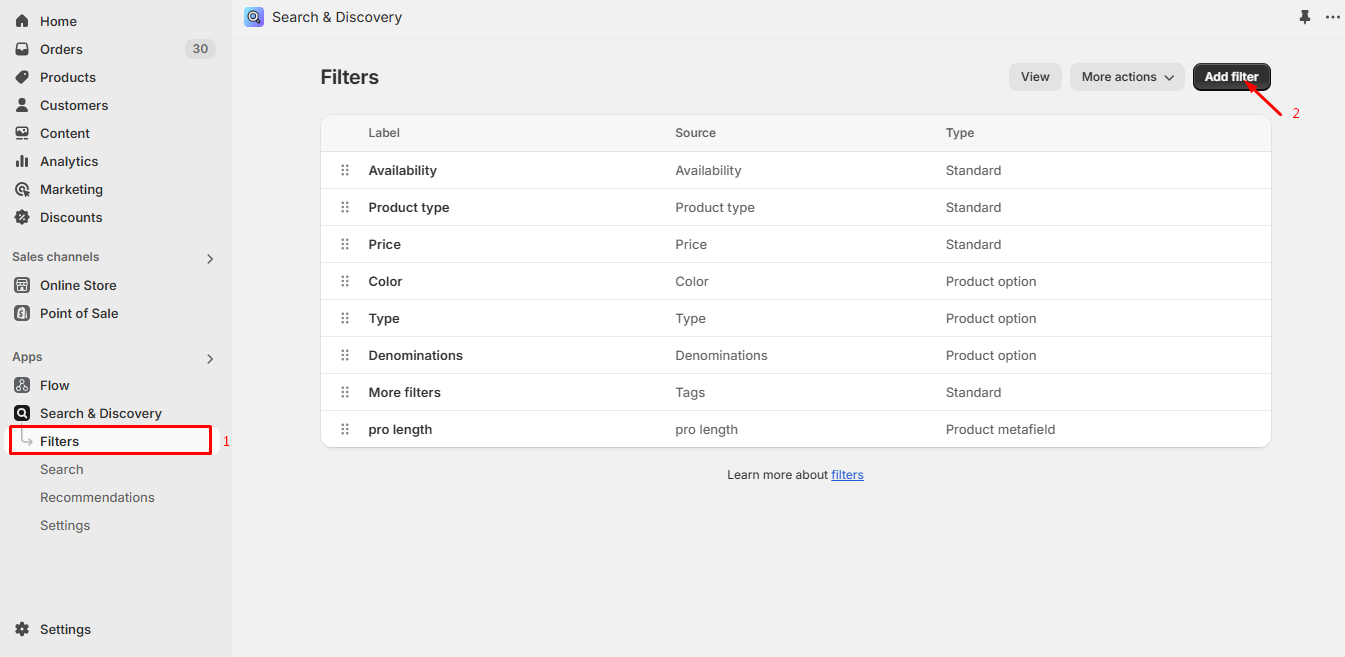

• Click on "Filters" and Add filter.

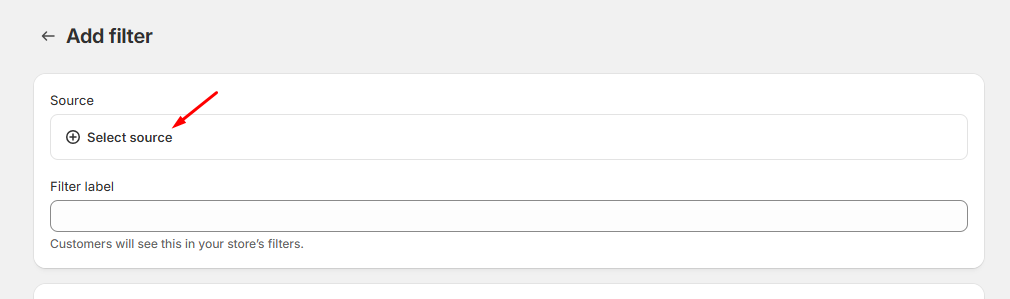

• Select the source.

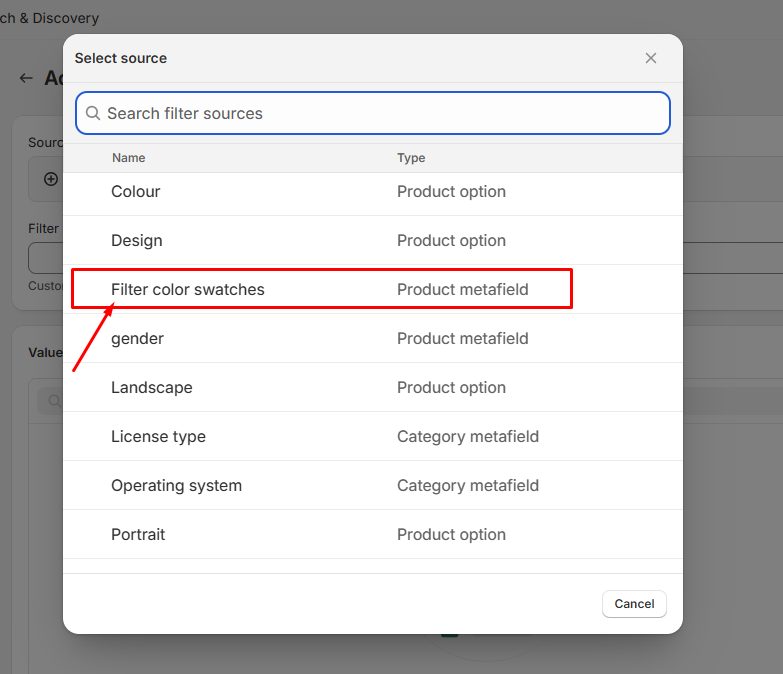

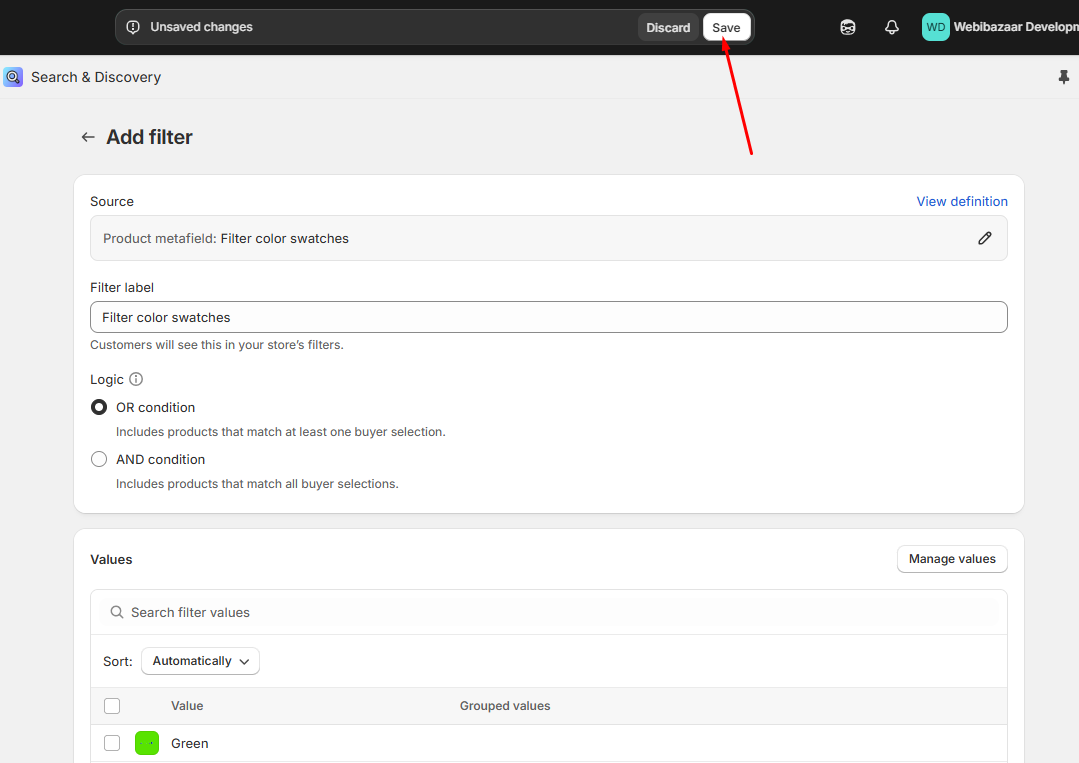

• Select the metafield for the name that you created in the product here and Save.

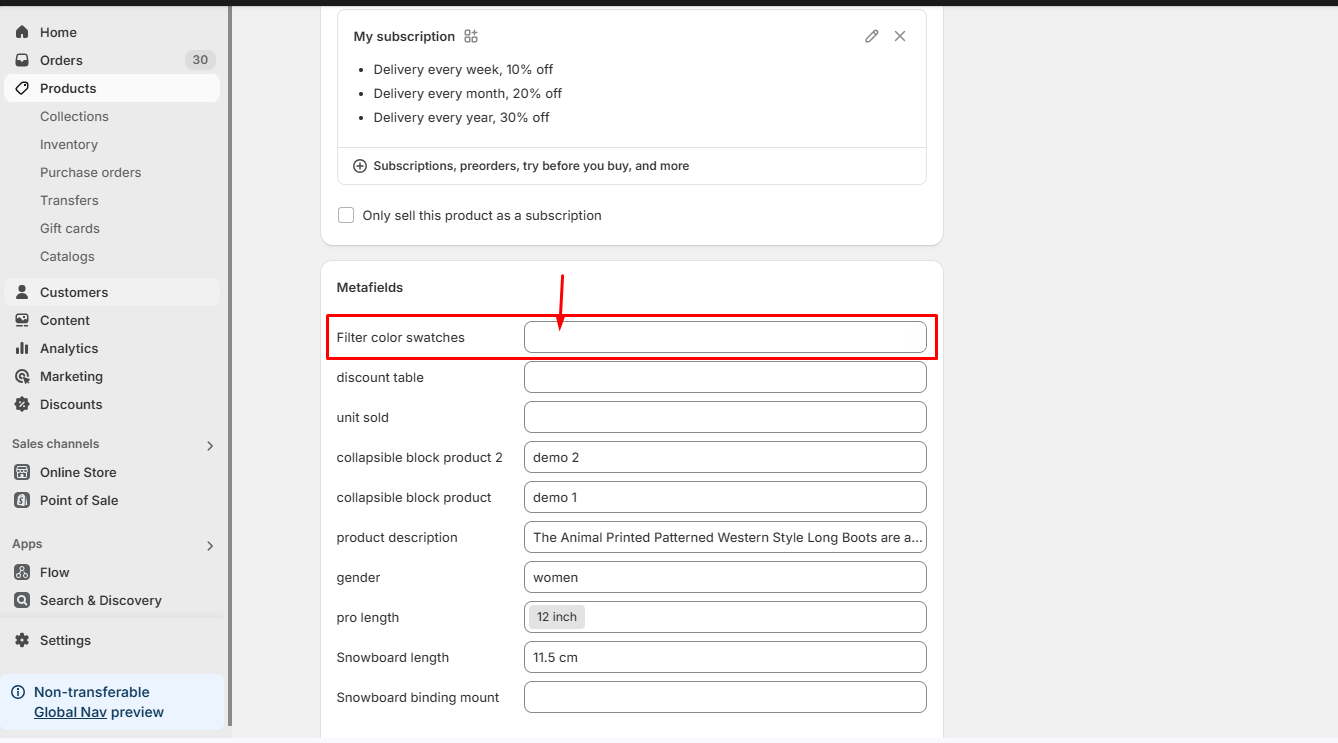

• From your Shopify admin, go to Products and select any one product.

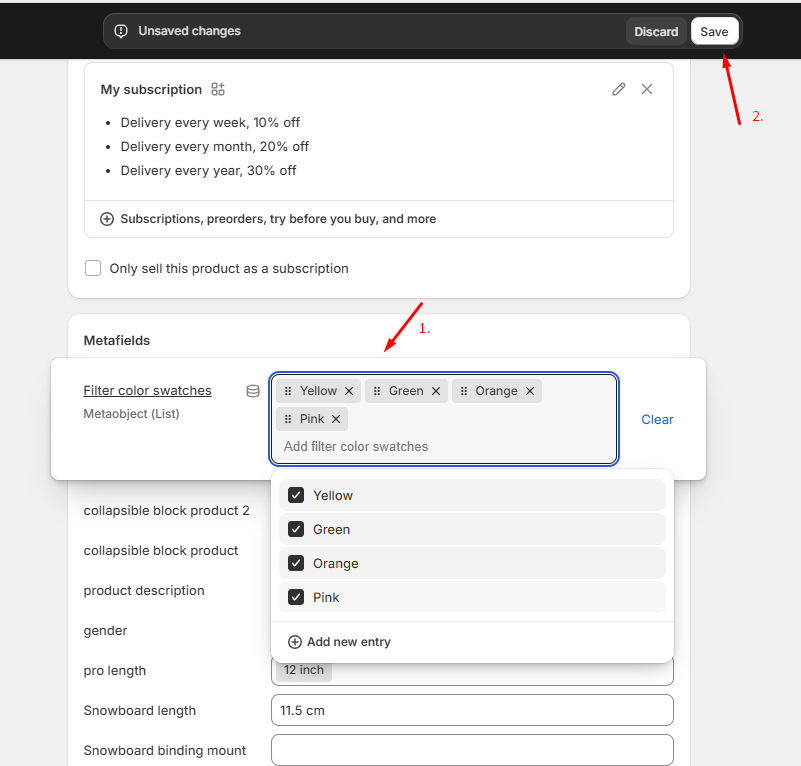

• Select the entry you added in the metaobject under the content section here and Save.

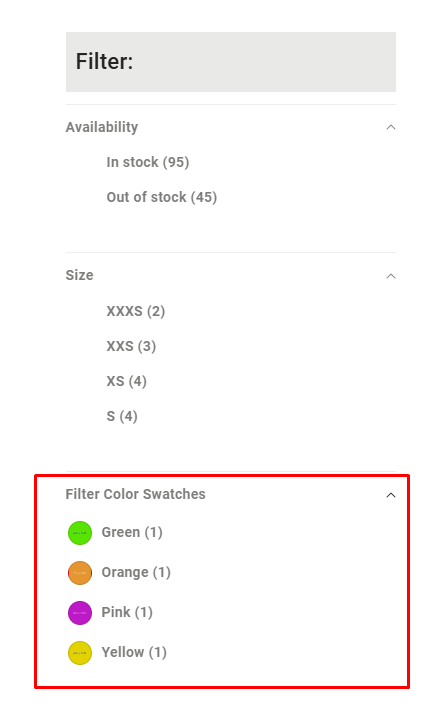

• The color swatches created from the metaobject will be displayed within the filter on the collection page.
