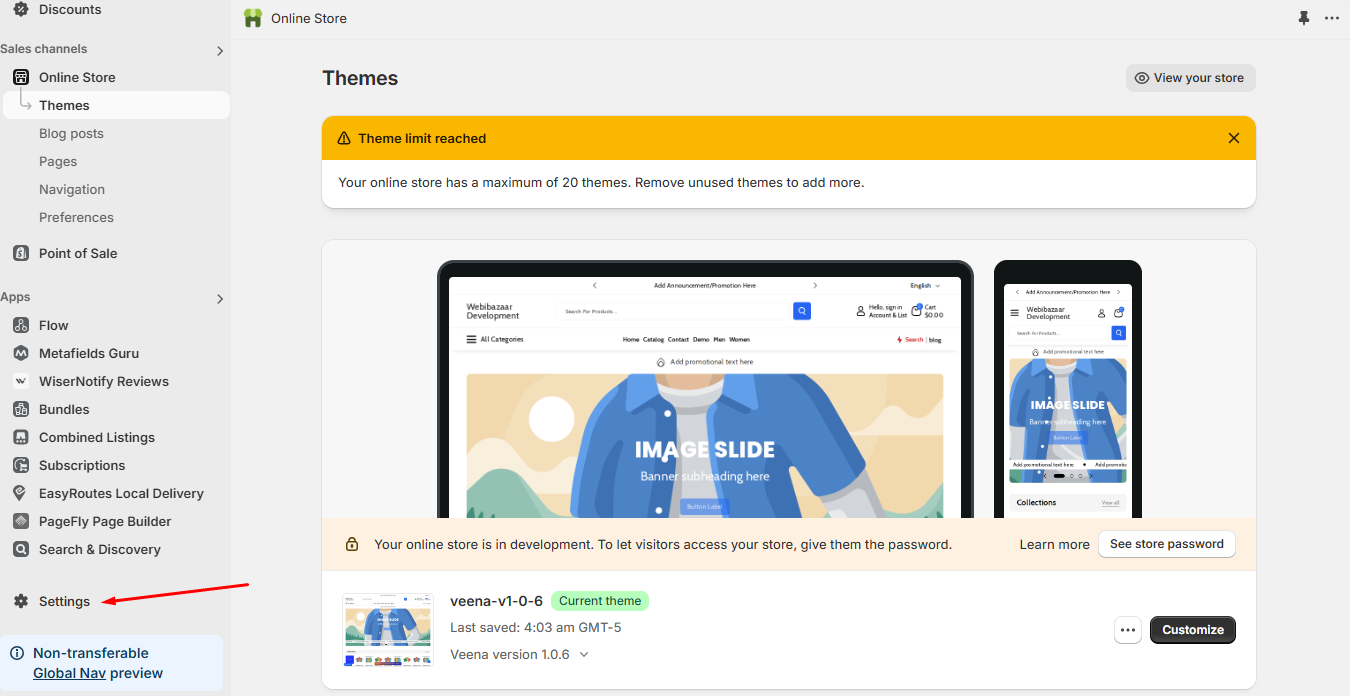

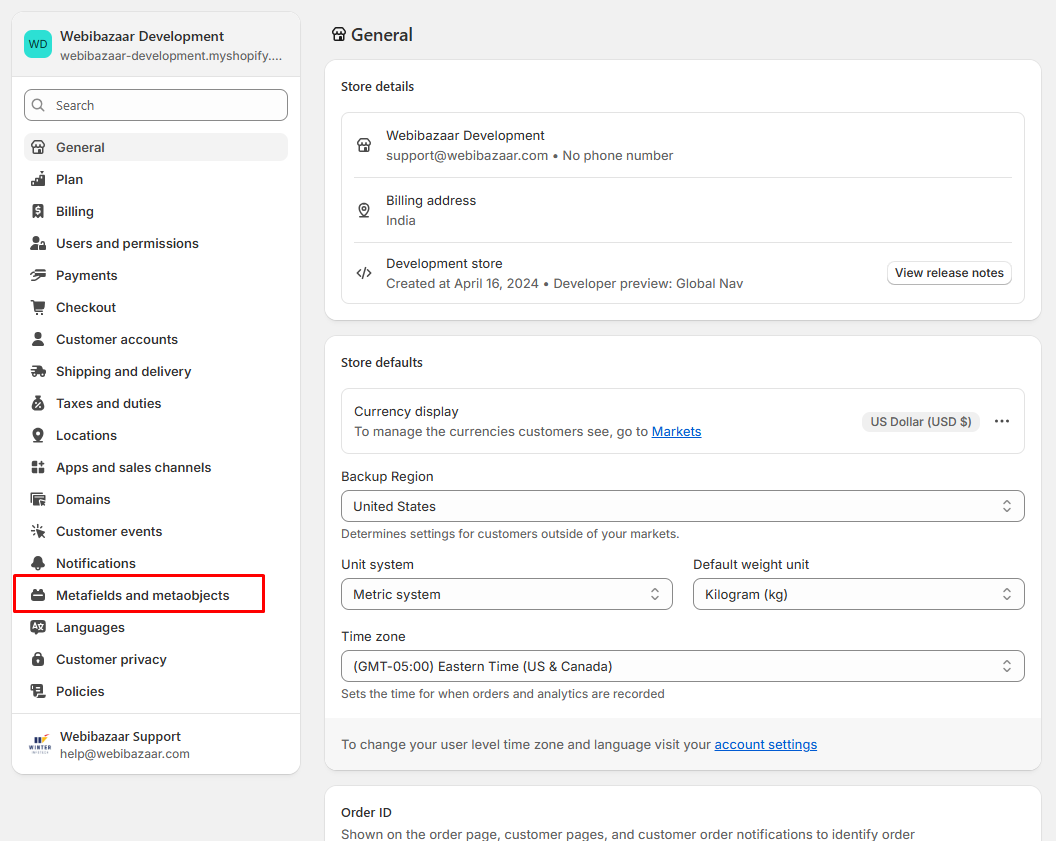

# Collection filter color swatch from metaobject {% embed url="" %} #### To display the color swatch using the metaobject in the collection filter, follow the steps below * From your Shopify admin, go to **Settings** > **Custom data.**
* Click on "**Add definition**".

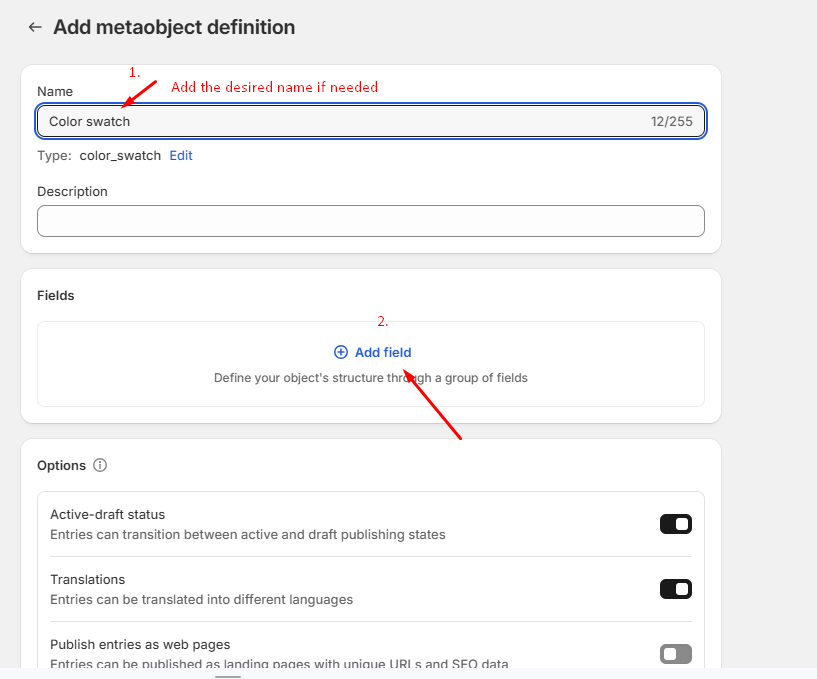

* Add the desired name if needed and Add field.

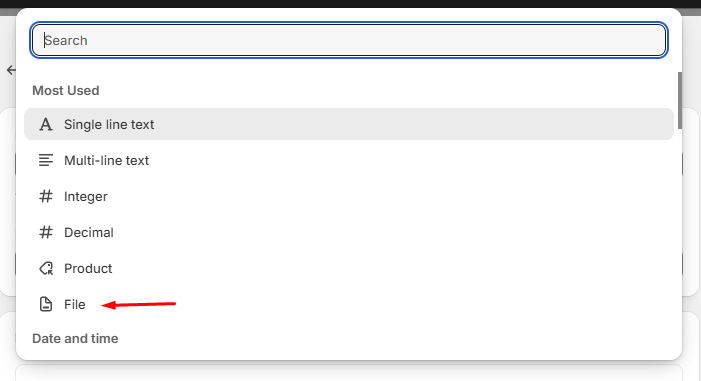

* Select **File** type.

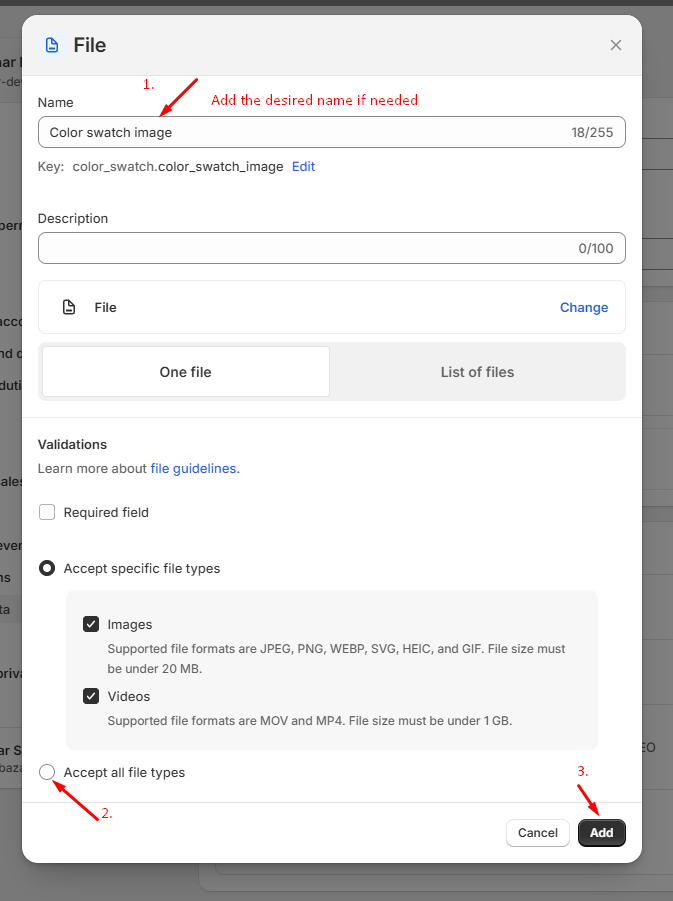

* Add the desired name if needed and Accept all file types, then click on **Add** button.

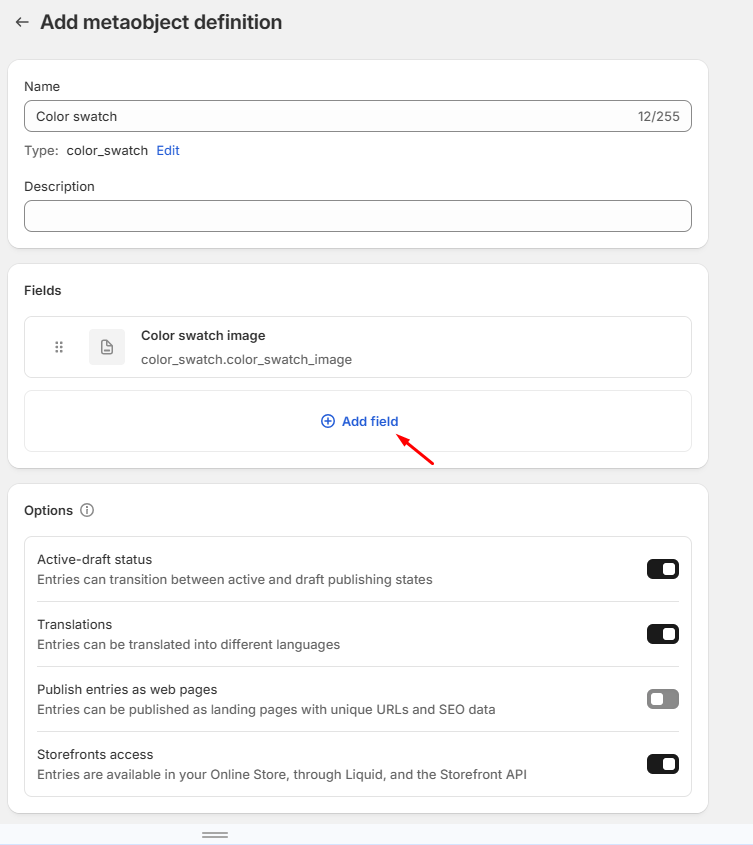

* To add a second field, click on '**Add Field**' again.
* Click on "Single line text".

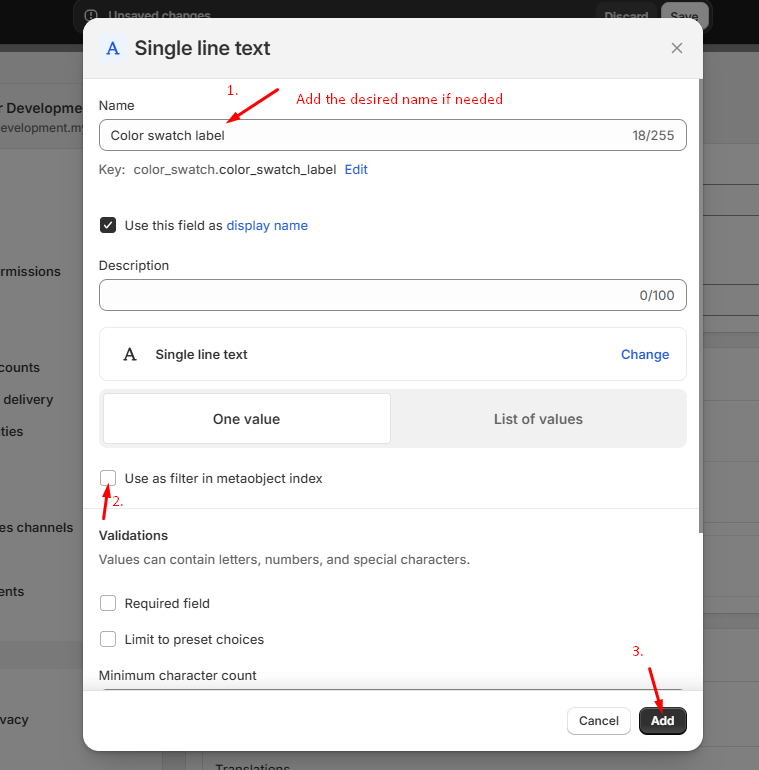

* Add the desired name if needed and click on "Use as filter in metaobject index", then click on **Add** button.
* The metaobject fields you created will be displayed. Then click 'Save'.

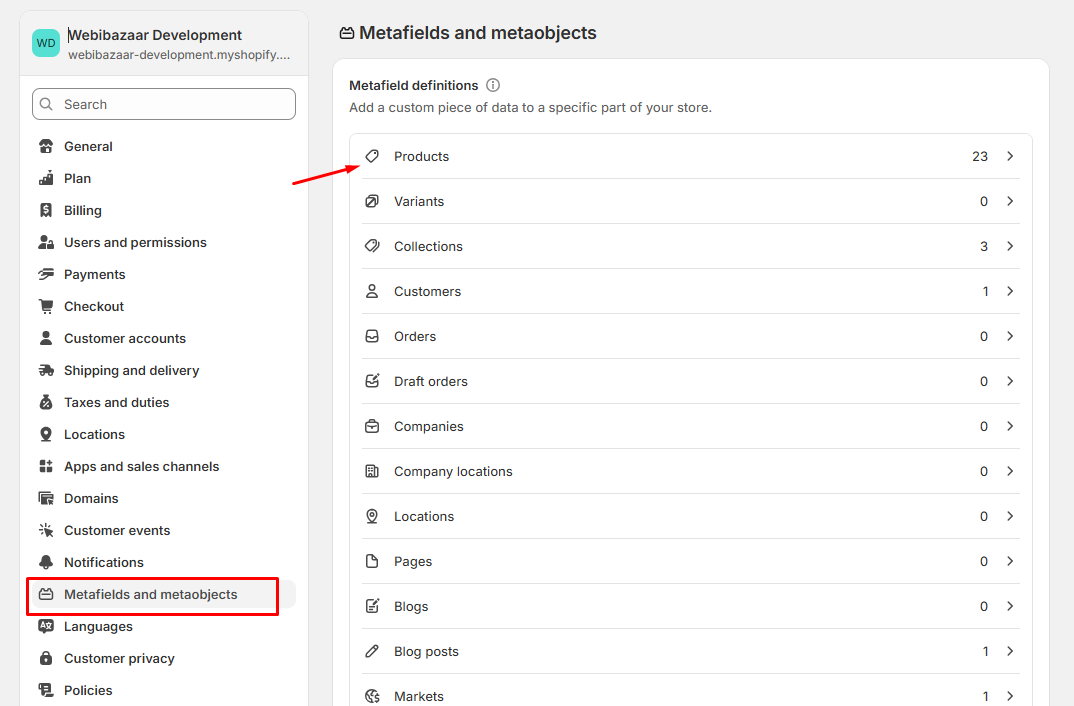

* From your Shopify admin, go to **Settings** > **Custom data > Products.**
* Click on "**Add definition**".
* Add the desired name if needed. The name you add here will be displayed in the collection page filter. then click on Select type.
* Click on "**Metaobject**".

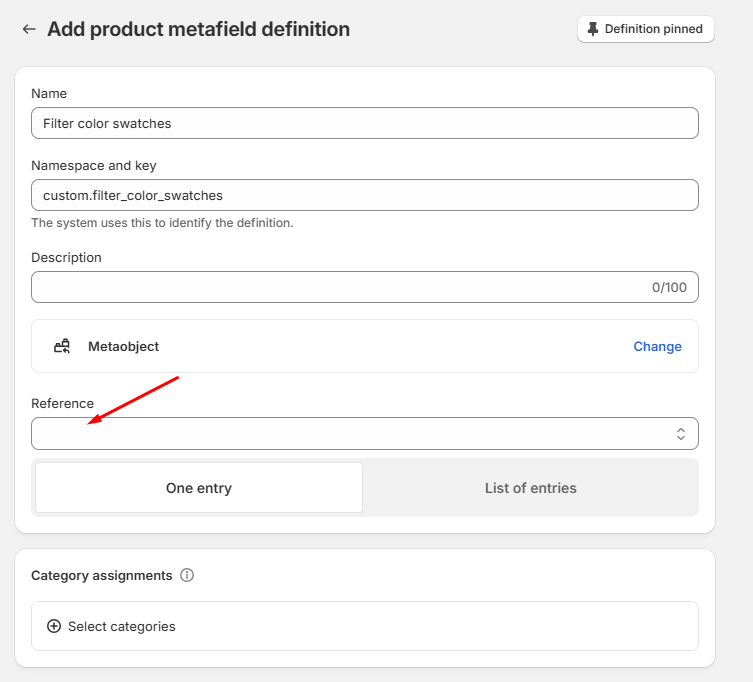

* Select the "**Reference**".

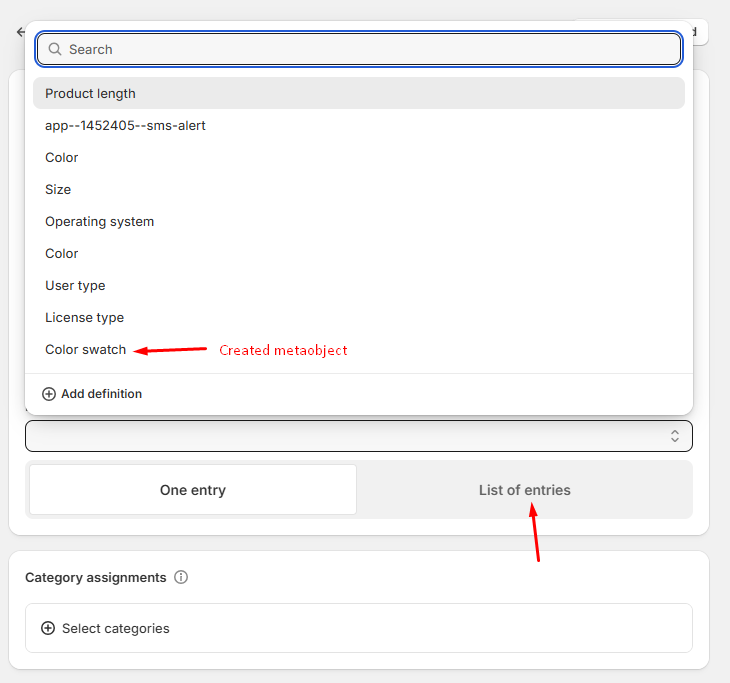

* Click on created metaobject, then select the "List of entries" and **Save**.
* From your Shopify admin, go to **Content > Metaobjects.**
* Click on "Add entry".

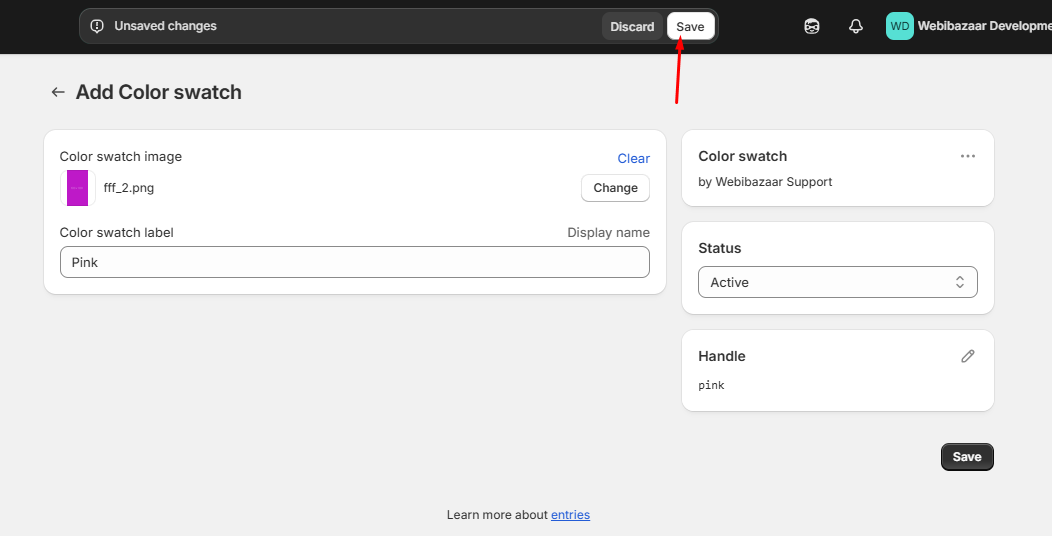

* Select the image you want to display in the color swatch filter and add a label, Then Save.
* Install the "**Search & Discovery**" app and open it.
* Click on "Filters" and Add filter.

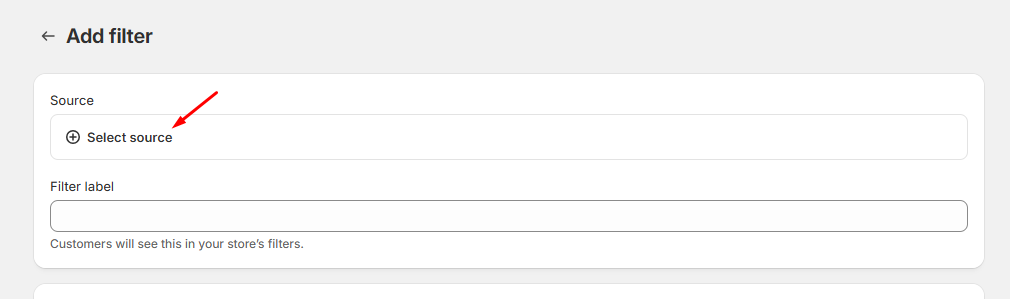

* Select the source.

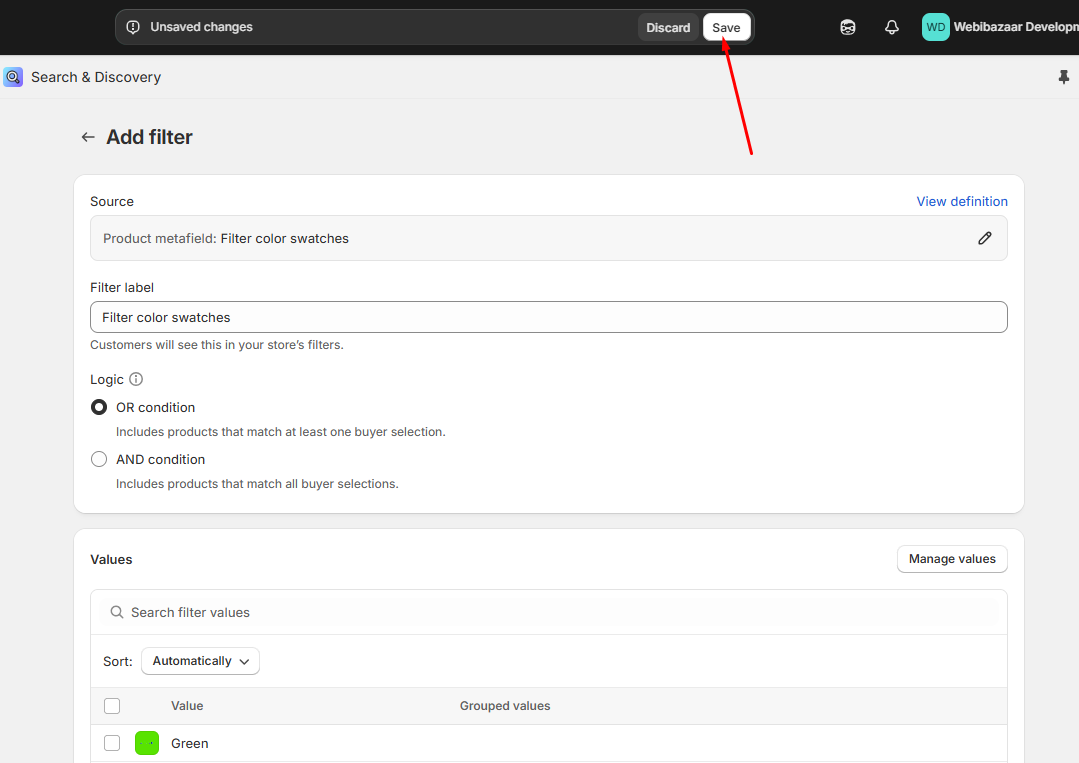

* Select the metafield for the name that you created in the product here and Save.
* From your Shopify admin, go to **Products** and select any one product.
* Select the entry you added in the metaobject under the content section here and Save.
* The color swatches created from the metaobject will be displayed within the filter on the collection page.
